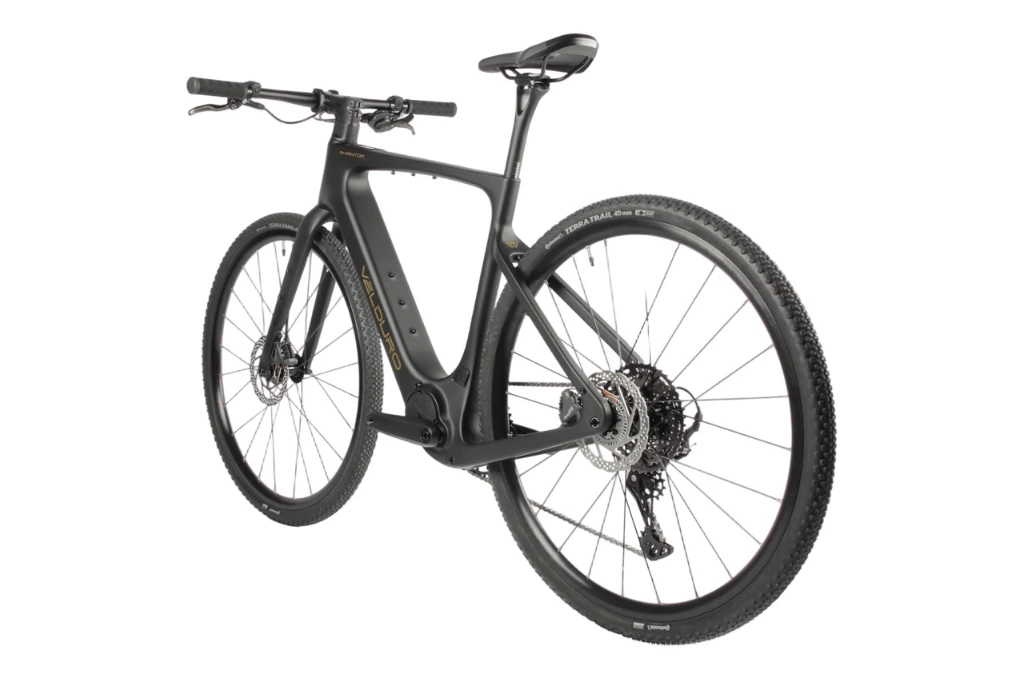

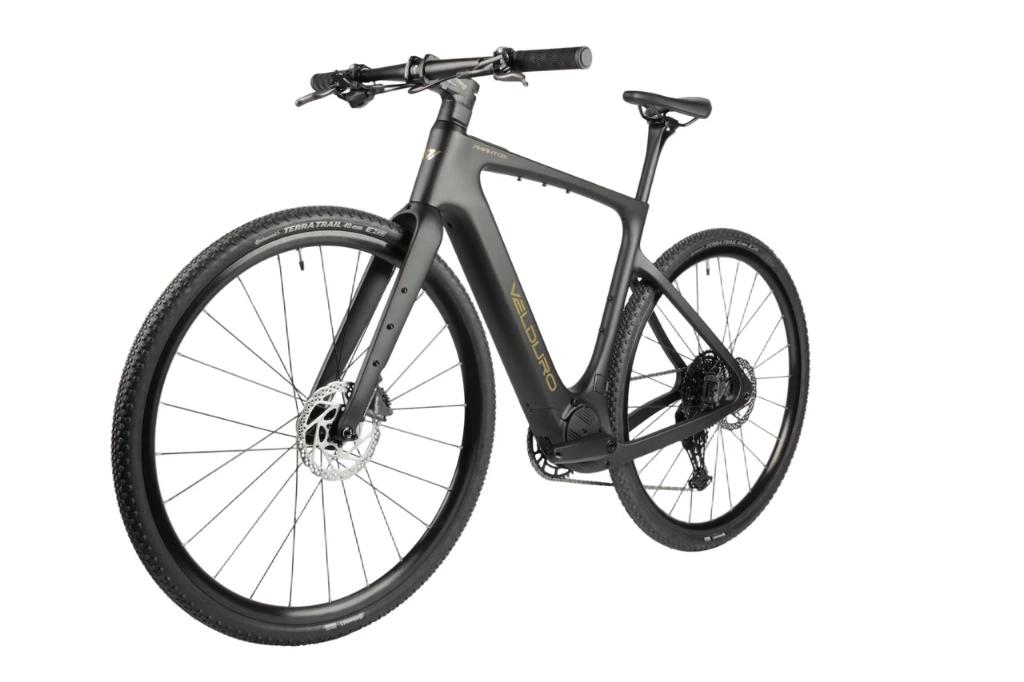

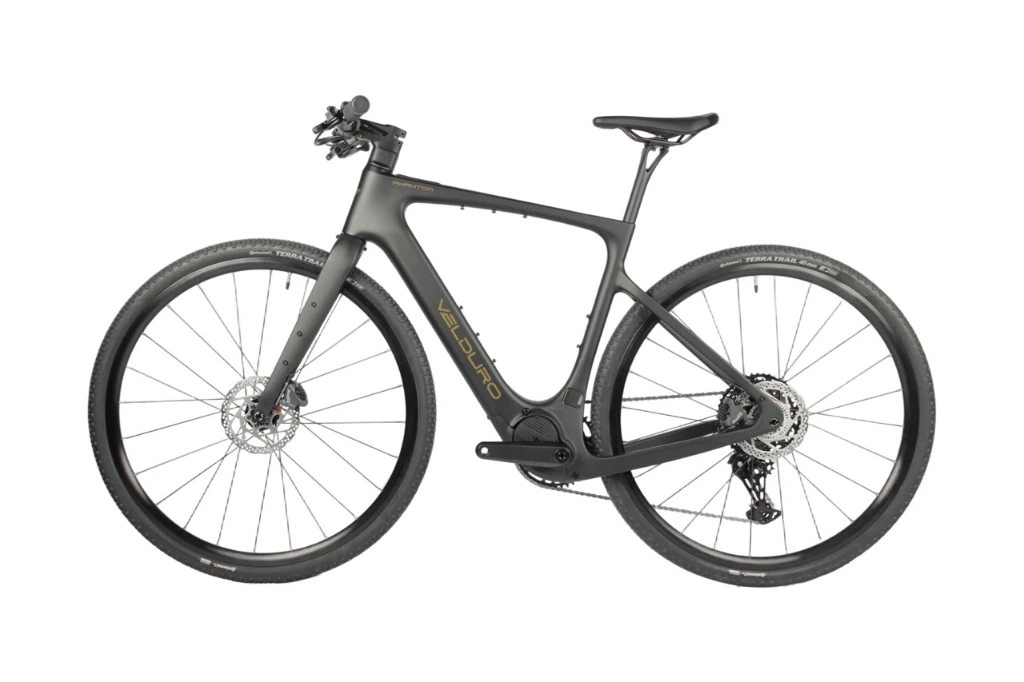

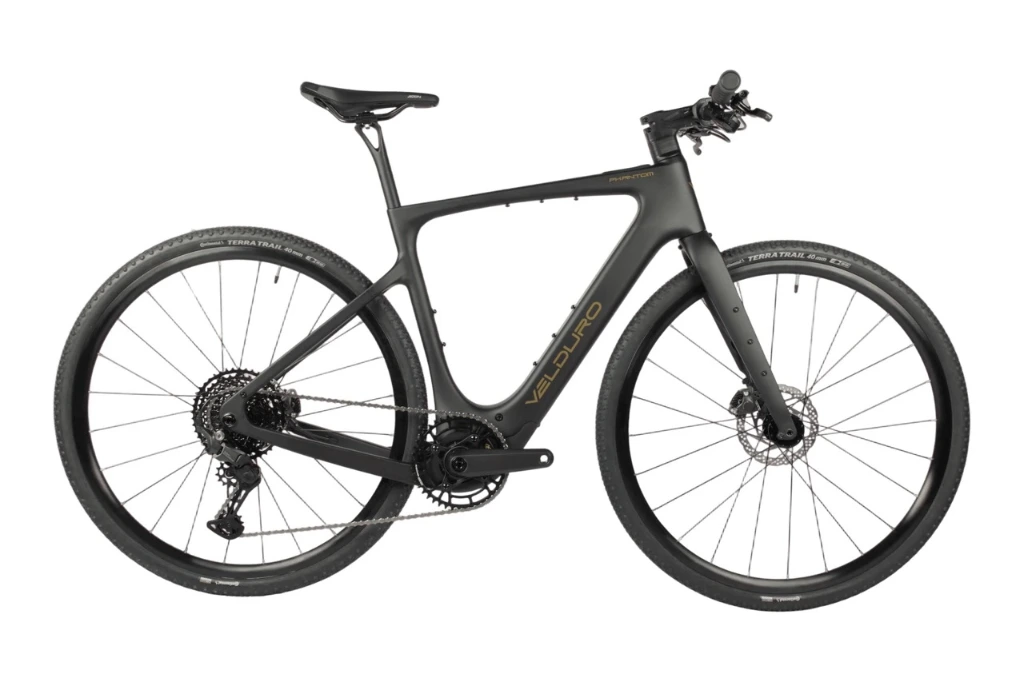

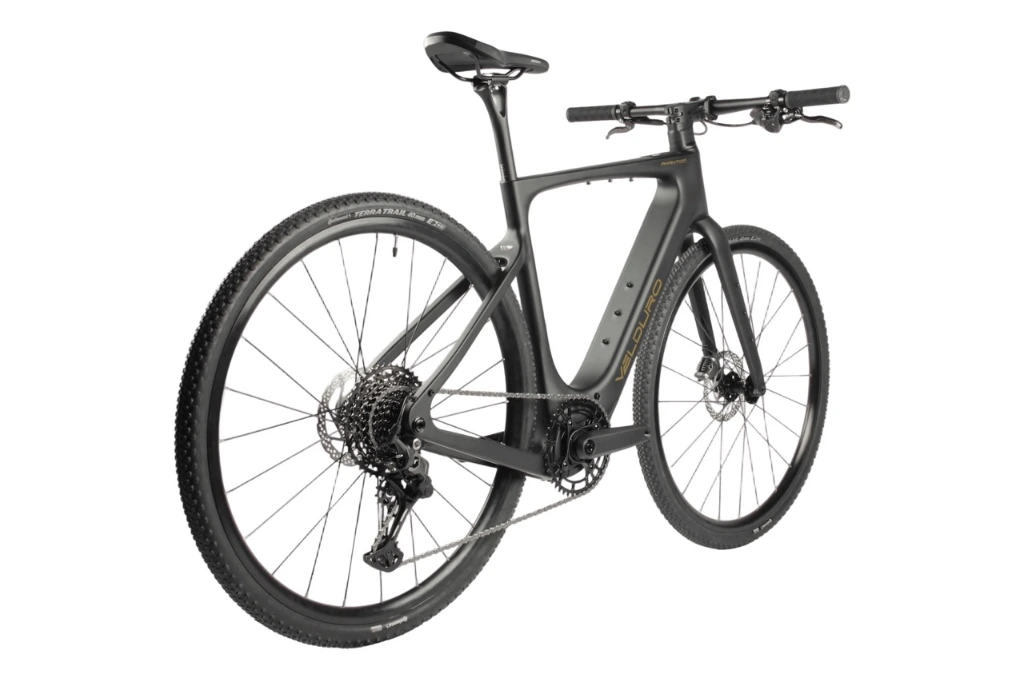

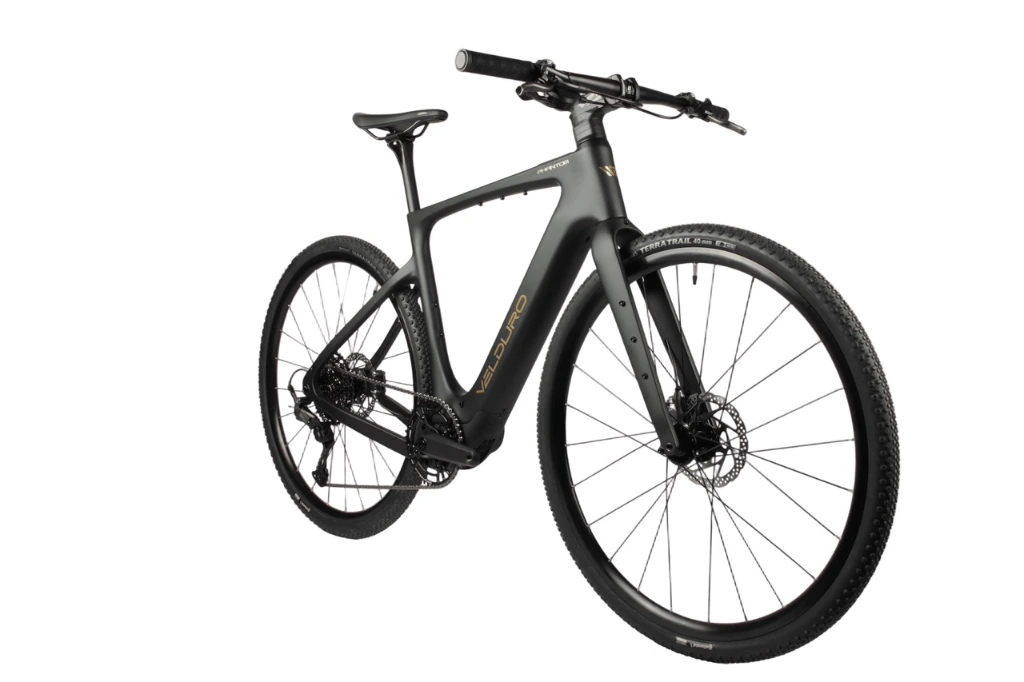

Velduro Phantom S

Frame, Fork, Saddle & Cockpit

• Frame: Carbon fiber, gravel catagery, battery integrated, inner cable routing, 12X142mm, 8 mounting points, rack compatible.
• Fork: Carbon gravel fork, 6 mounting point 12X100mm, offset 50mm.
• Headset: Token TK155SP Dia28.6, Alloy dia top & bottom 52mm.
• Saddle: Fizik terra aidon X5.
• Seatpost: Velduro carbon Dia27.2 380mm, BLK.
• Handlebar: Velduro alloy MTB straight, Dia31.8, width:680mm, BLK.
• Stem: Velduro Alloy road stem, BLK, S&M: 75mm, L&XL: 95mm Length.
• Grips: Velduro MTB comfort BLK.

Motor & Battery

• Motor: Avinox M2 36V 1100W / 110Nm, boost 125Nm.
• Battery: Avinox 600Wh integrated.
• Display: Avniox DP100 integrated 2-inch display.
• Button: Avinox BC100 Wireless control left&right.
• Charger: Avinox 4A charger.
• Cables: Avinox customised Waterproof and foolproof wiring.

Drivetrain & Brakes

• Brakes: Sram S300 hydraulic, two piston
• Discs: Sram centerline, front 160mm, rear 160mm.
• Rear derailleur: Shimano Cues RD-U6000, 11-speed.
• Cassette: Shimano Cues LG400-11S 11-45T.
• Cranks: Avinox SL 165mm.
• Spider: Avinox 104BCD spider.
• Chainwheel: Velduro customised alloy 44T, 3mm inward.
• Chain: Shimano LG500 linkglide BLK.

Wheels & Tyres

• Front hub: Velduro 2-bearings, BLK, 6-bolts, 13G*24H, 12x100mm.
• Rear hub: Velduro 4-bearings, BLK, 6-bolts, 13G*24H, 12x142mm, HG freehub.
• Rims: 700C, Velduro alloy, BLK, 13G*24H, 25mm inner width, 25mm depth, with hook.
• Tires: Continental Terra Trail 700*45C BLK, with tube.

* Your Phantom is tubeless-ready, but comes with a tube.
