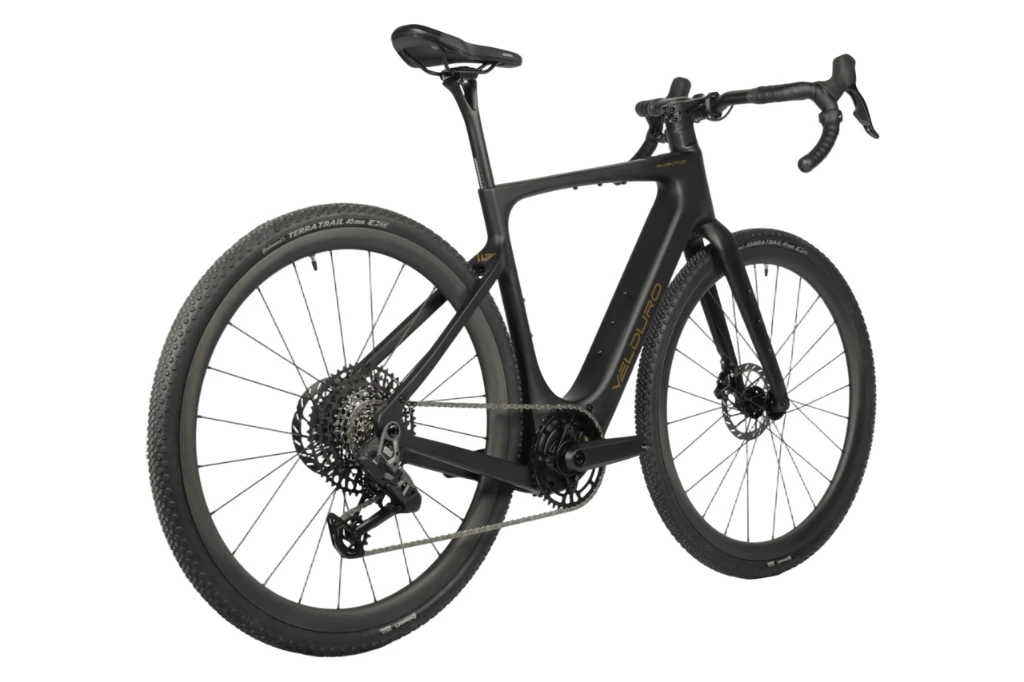

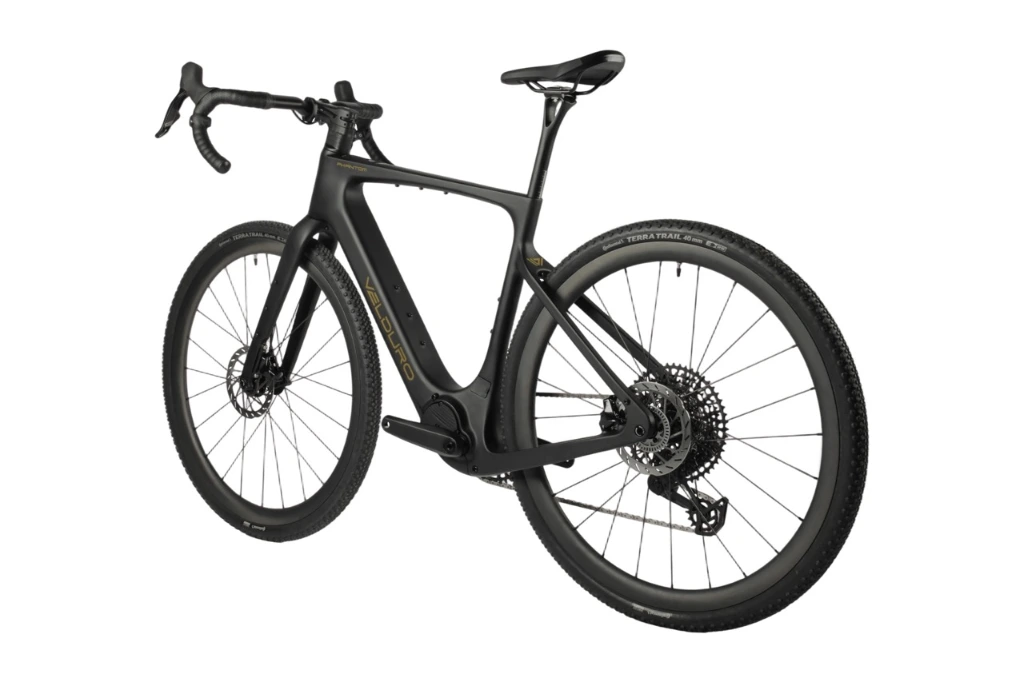

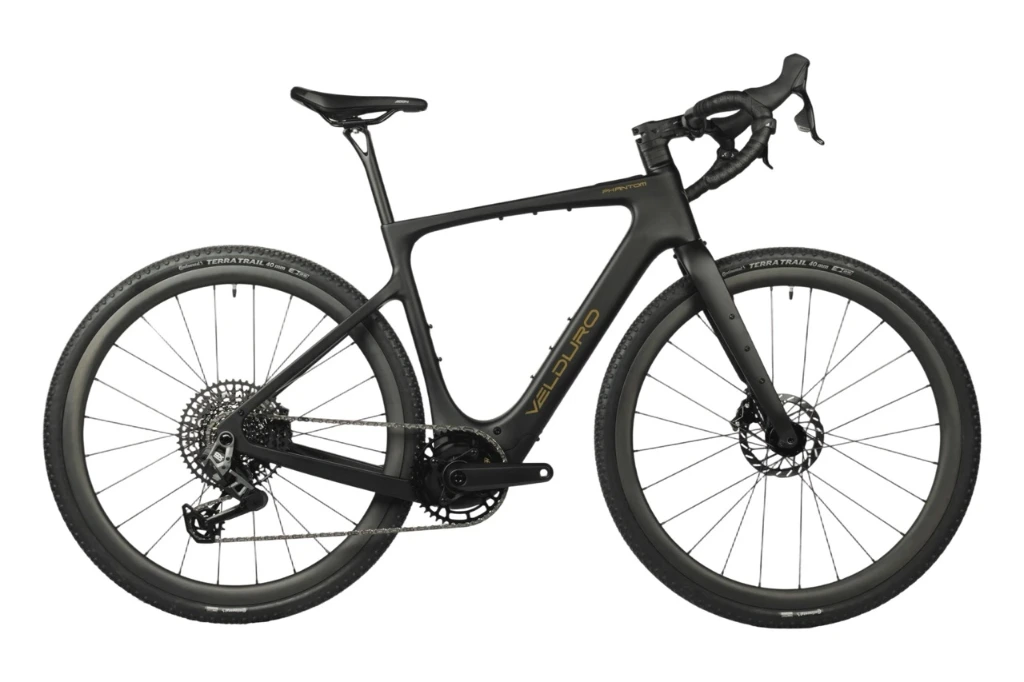

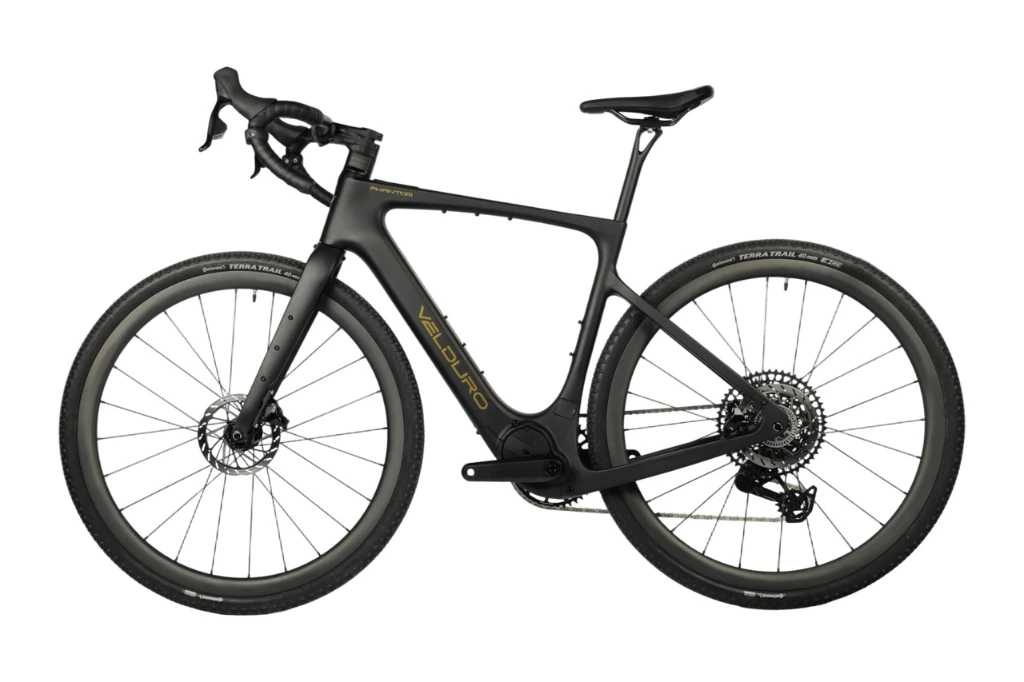

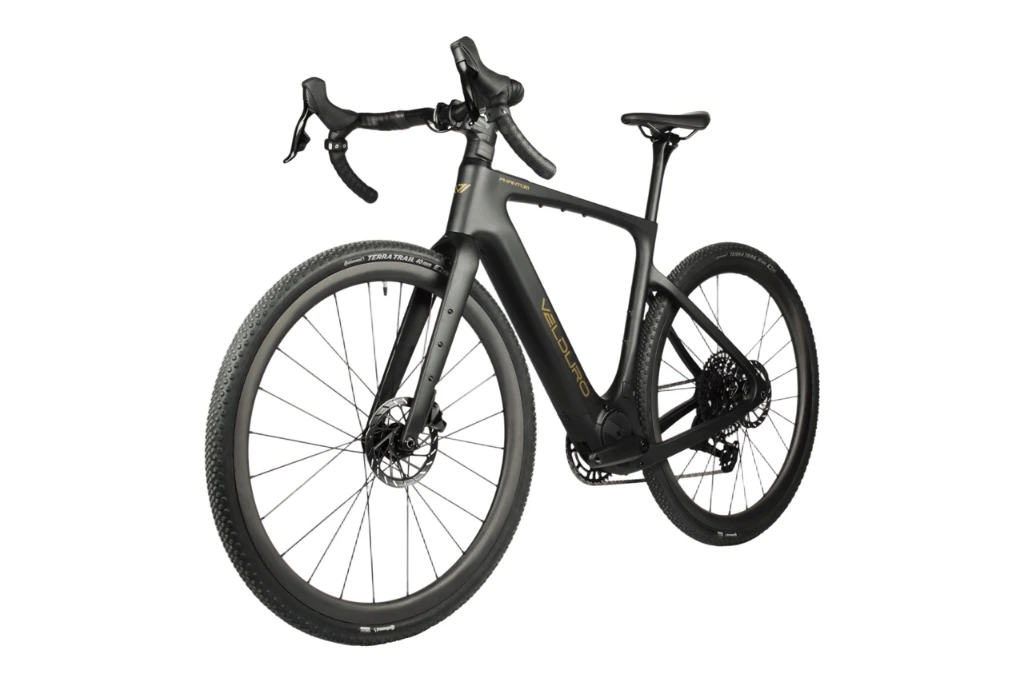

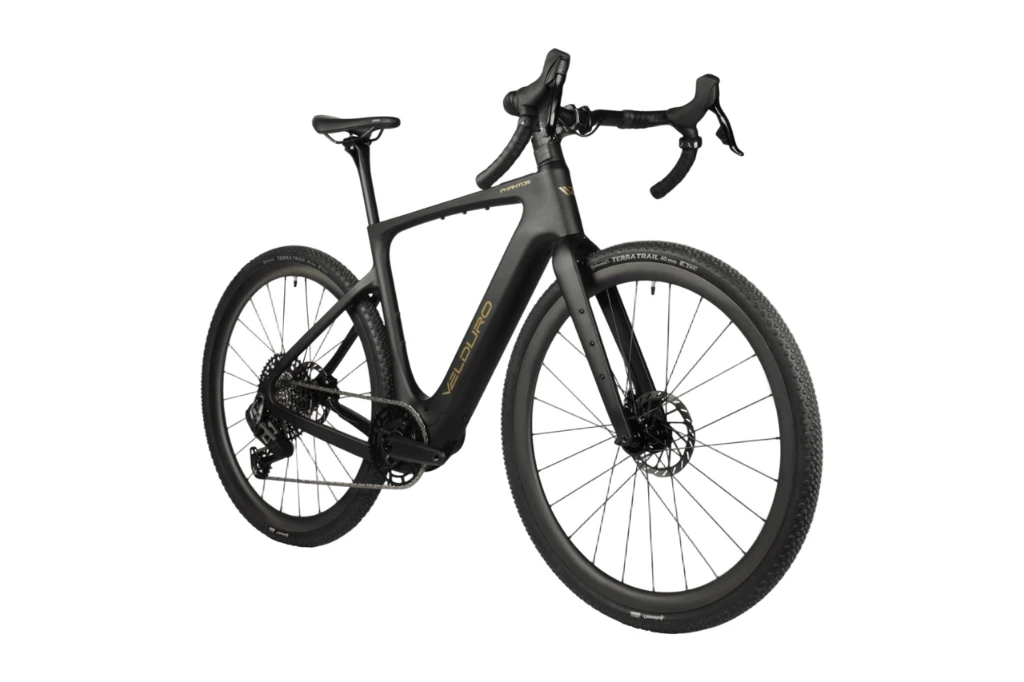

Velduro Phantom X

Frame, Fork, Saddle & Cockpit

• Frame: Carbon fibre, gravel category, battery integrated, inner cable routing, 12X142mm, 8 mounting points, rack compatible
• Fork: Carbon gravel fork, 6 mounting points, 12X100mm, offset 50mm
• Headset: FSA NO.55R 1.5" / 558 ACR, Alloy gravel, dia top& bottom 52mm
• Stem: FSA SMR Alloy -6° alloy Length S:70mm M:80mm, L:90mm, XL:100mm
• Saddle: Fizik Terra Aidon X5
• Seatpost: Velduro carbon Dia27.2 380mm
• Handlebar: Velduro Carbon, Dia31.8, Flare 15°, Width: S/M 420mm, L/XL: 440mm
• Straps: Velduro black gravel strap

Motor & Battery

• Motor: Avinox M2 36V 1100W / 110Nm, boost 125Nm.
• Battery: Avinox 600Wh integrated.
• Display: Avniox DP100 integrated 2-inch display.
• Button: Avinox BC100 Wireless control left&right.
• Charger: Avinox 4A charger.
• Cables: Avinox customised Waterproof and foolproof wiring.

Drivetrain & Brakes

• Brakes: Sram Rival AXS HRD Shift-Brake System
• Discs: Sram HS2 extreme duty disc, front 160mm, rear 160mm
• Rear derailleur: Sram Rival XPLR AXS Rear Derailleur with power cable
• Cassette: Sram Rival XPLR XG-1351 13-speed Cassette
• Cranks: Avinox SL 165mm
• Chain: Sram Rival Transmission Flattop Chain
• Spider: Avinox 104BCD spider
• Chainwheel: Velduro customized alloy 44T, 3mm inward

Wheels & Tyres

• Front hub: Velduro 2-bearings, BLK, 6-bolts, 13G*24H, 12x100mm
• Rear hub: Velduro 4-bearings, BLK, 6-bolts, 13G*24H, 12x142mm, XDR freehub
• Rims: 700C, Velduro Carbon, UD black, 13G*24H, 24mm inner width, 35mm depth, with hook
• Tires: Maxxis Rambler 700*45C BLK, with tube

* Your Phantom is tubeless-ready, but comes with a tube.
